Vertical Thruster Motor Mount Replacement Procedures

Time required for this step: Approximately 5 Minutes

Tools required for this step:

• #2 Phillips Head Screw Driver
• Blue Loctite or equivalent

Parts involved in this step:

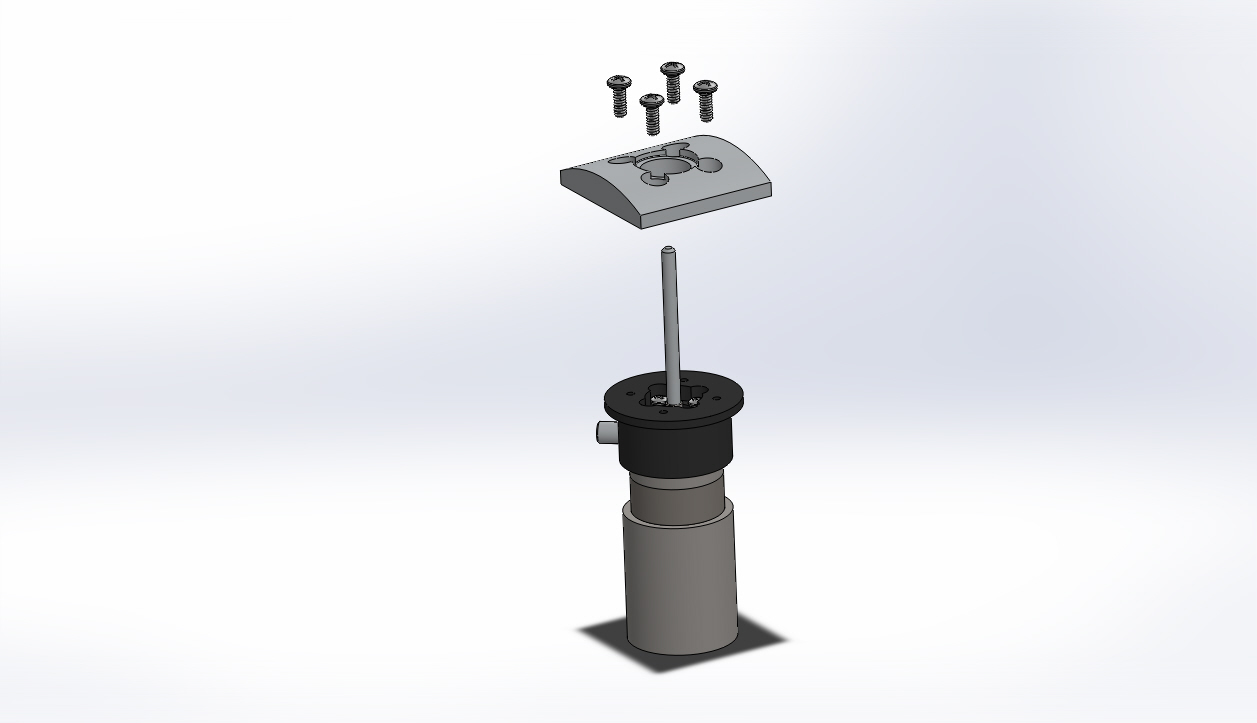

VTH-002 Vertical Thruster Motor Mount

Steps

1. Orient the vertical thruster motor mount at the shaft end of the vertical motor assembly and the curved surface away from the vertical motor.

2. The curved upper edge of the vertical thruster motor mount must be aligned with the wires of vertical motor assembly.

3. slide the vertical thruster motor mount over the vertical thruster motor shaft and onto the vertical thruster motor assembly.

4. Align the screw holes of the vertical thruster motor mount and vertical motor assembly.

5. Apply blue Loctite to the 6-32 X 3/8 inch Phillips head screw threads.

6. Replace the four 6-32 X 3/8 inch Phillips head screws through the vertical thruster motor mount and into the vertical thruster motor assembly and tighten the screws.

If the video above doesn't play in your browser, click this play icon to try an alternate method: , or click this manual reference icon to view an exploded view
