Camera Focus Servo Motor Assembly Replacement Procedures

Time required for this step: Approximately 5 Minutes

Tools required for this step:

• None

Parts involved in this step:

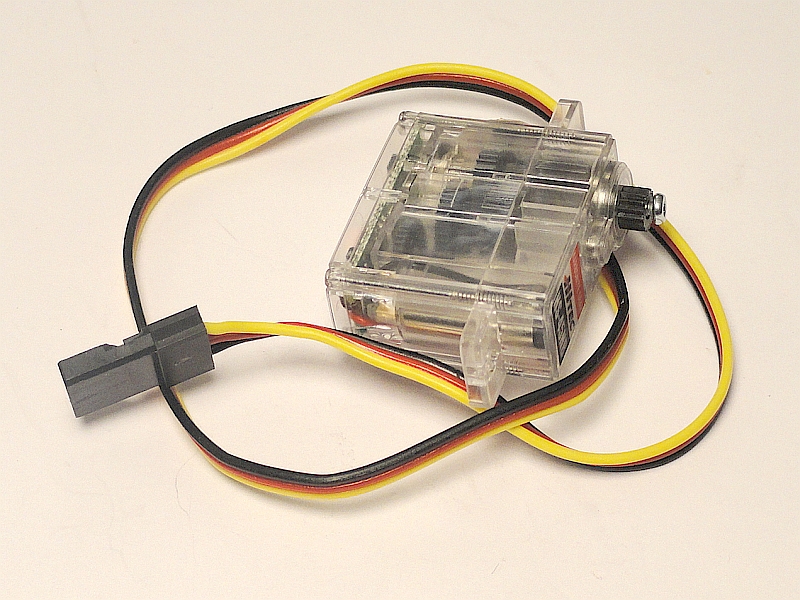

MAR-013 Camera Focus Servo Motor Assembly

Steps

1. Orient the camera mount cover so that the round lens opening is to the left when viewed from the rear.

2. Orient the camera focus servo motor at the rear of the camera mount cover, with the gear toward the front and on the top.

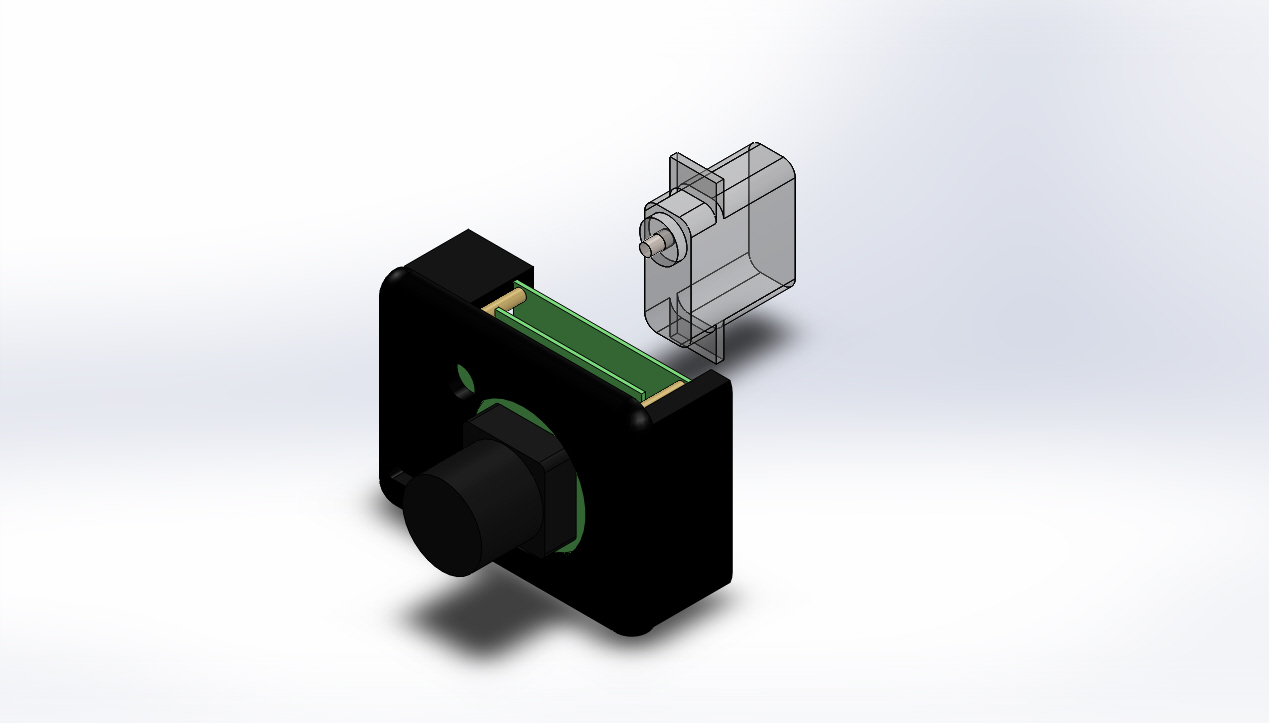

3. Install the camera focus servo motor in the camera mount cover from the rear of the cover.

4. Makes sure the camera focus servo motor is fully seated in the camera mount cover or you will not be able to get the camera mount base on properly.

If the video above doesn't play in your browser, click this play icon to try an alternate method: , or click this manual reference icon to view an exploded view

Tip

The camera focus servo motor is held in place by the camera mount cover and base. At this point there are no fasteners to secure it.
